Switching to Sensor Direct Mode
![](../images/sankaku02.png?crc=4148122217)
Switch from Mirror Mode to Sensor Direct Mode.
Smartphone

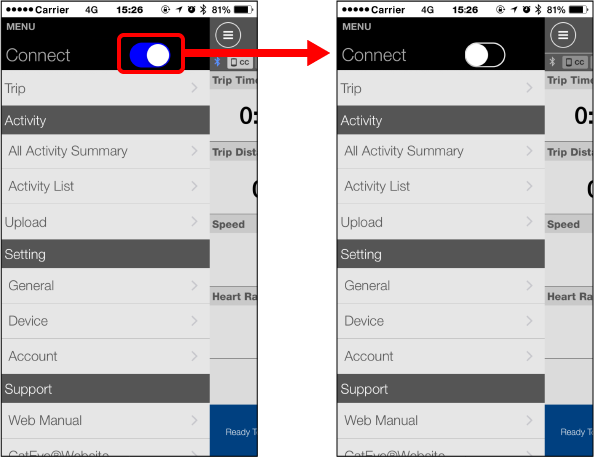

1. Close Cateye Cycling™ or from (MENU), turn off [Connect].
![](../images/display_app_menu_on-off_eng_v3.png?crc=60584440)
Smart computer
2. From the smartphone search screen, press MODE for 1 second to switch to Sensor Direct Mode.
![](../images/display_cc_search.png?crc=3795615961)
Smartphone search screen
![](../images/triangle.png?crc=4022206746)
![](../images/butten_cc_mode22.png?crc=4106694955)
(1 second)
![](../images/display_cc_direct_v3.png?crc=4276001547)
Measurement screen
* Smart computer will search for a sensor instead of your smartphone. In this mode, the sensor icon flashes to indicate sensor reception status.
• S (Flash): When the speed signal is received
• C (Flash): When the cadence signal is received
• S/C (S and C flash simultaneously): When the speed/cadence (ISC) sensor signal is received
• H (Flash): When the heart rate signal is received
• P (Flash): When the power signal is received
• (Flash): When the Shimano DI2 system signal is received
Important
Sensor Direct Mode and Mirror Mode measure independently and data has no continuity.
