Setup

Set up smart computer according to the procedure below when using it for the first time.

Button operation

Check button locations before starting set up.

Padrone Smart

Back

Strada Smart

Back

Pull free the smart computer's insulation sheet.

After you pull free the insulation sheet, return the battery cover to its previous location.

* If characters are lit on the LCD screen, you can use the product as is.



Insulation sheetPadrone SmartCloseOpen





Insulation sheetStrada SmartPressSlideWaterproof inner cap

1. Format (initialize) smart computer.

Caution

All data will be deleted and smart computer will be reset to factory default settings.

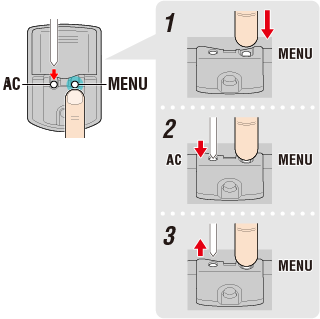

While holding down the MENU button on smart computer, press the AC button.

The whole display turns on and then switches to the smartphone search screen.

Whole display turns on

Smartphone search

screen

Press MENU to proceed to the next step.

* If smart computer switches to the measurement screen without the whole screen turning on, it has not been formatted. Redo the procedure.



2. Display the desired measurement unit.

Press MENU to proceed to the next step.



3. Pair a sensor.

Smart computer can be used with sensors compatible with Bluetooth. Pair it with optional accessories or commercial sensors as required.

Important

• Pairing (ID synchronization) must be performed in order to use a sensor.

• Avoid pairing sensors at a race venue or in similar locations where there are many other users. Doing so may cause smart computer to be paired with another device.

• Pair all sensors that you intend to use.

• During pairing or when connected to a smartphone, if sensor information is stored in Cateye Cycling™, this information is written to the smart computer.
Smartphone : Pairing with a sensor

Activate the sensor that you want to pair.

Activating the sensor

Ready for synchronization

Sensor activated

Synchronization complete

The synchronized sensor is displayed on the top of the screen and pairing is completed.

SP : Speed sensor

ISC : Speed/cadence sensor

CD : Cadence sensor

HR : Heart rate sensor

PW : Power sensor

* When pairing a sensor with a smart computer, a "C" is displayed after the sensor name.

* To pair another sensor, press MODE for 2 seconds to return to the synchronization standby screen, and repeat the same procedure.

* If pairing is not successful and you cannot proceed to the next step, press MENU to skip pairing. After setup is complete, retry pairing again from the menu screen.



Press MENU to proceed to the next step.



4. Enter the tire circumference.

Important

If smart computer is not paired with a sensor capable of measuring speed, tire circumference entry is skipped.

Enter the circumference in mm of the tire (the length of the outer circumference of the tire) on which the sensor is installed.

(Setting range: 0100 – 3999 mm)

Determining tire circumference

Increase number

Move to next digit

(2 seconds)

* Error is displayed if values outside the setting range are entered.

* If multiple sensors capable of speed measurement have been paired, set the tire circumference for each of the remaining sensors from the menu screen after setup.



Press MENU to proceed to the next step.



5. Set the time display mode and the time.

(2 seconds)

Time display mode

Hours

Minutes

AM/PM

(2 seconds)

Select 24 h

Select 12 h

(2 seconds)

Increase number

Increase number

(2 seconds)

(2 seconds)

Pressing MENU switches to the measurement screen.



Setup is now complete.
