CATEYE PADRONE SMART

CATEYE STRADA SMART

Smart computer

Starting/stopping measurement

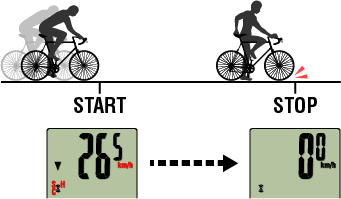

  • 　Starting/stopping measurement

    Measurement starts automatically when the bicycle moves.

    During measurement the measurement unit flashes.

  • 　Reset operation

    Reset(3 seconds)Pressing and holding MODE when on the measurement screen resets measurement data to 0.

    * When MODE has been pressed for 1 second, a smartphone search screen appears, but you should continue to hold down the button.
    If smart computer stops on this screen, press MODE again for 1 second to return to the measurement screen.

    ​

    ●Resetting Trip Distance 2 (Dst2):

    If Trip Distance 2 (Dst2) is displayed and MODE is pressed for 3 seconds, only Trip Distance 2 is reset to 0.

    *Total Distance (Odo) cannot be reset.

  • 　Switching measurement data display

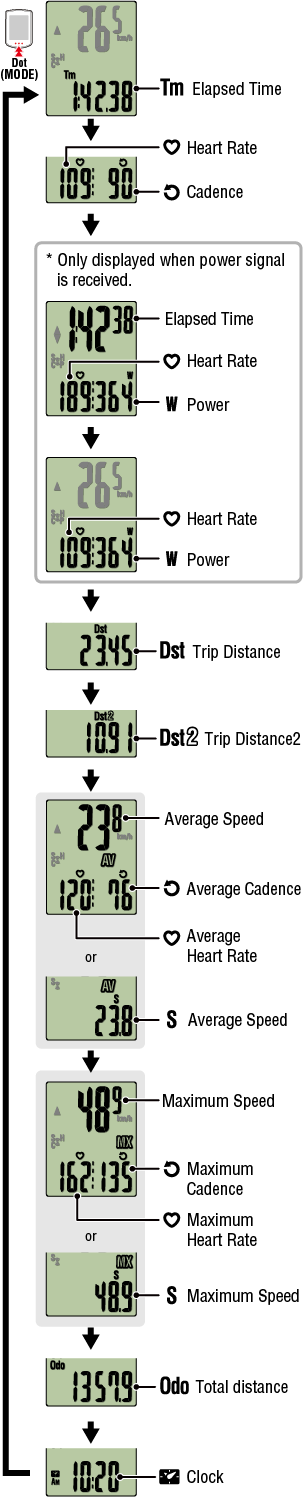

    Pressing MODE switches the measurement data displayed at the bottom of the screen.

    * The data displayed changes depending on the state of the sensor connection.

    * Heart rate and cadence data will not be displayed unless each sensor is paired.

    *Average values are displayed as .E instead of the measurement value when Elapsed Time exceeds approximately 27 hours. Average speed is also displayed as .E instead of the measurement value when Trip Distance exceeds 1,000 km [620 mile].
    Reset smart computer and start measurement again to enable average value measurement.

    ​ Reset operation

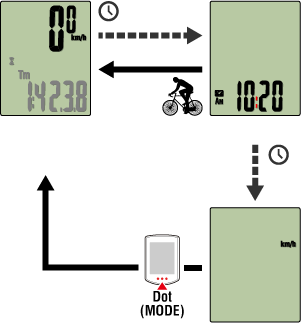

  • 　Power-saving mode

    If there is no sensor signal or button operation for 10 minutes, the power-saving screen is activated. If such a state continues for a further hour, the sleep display is activated.

    The power-saving screen returns to the measurement screen when the bicycle starts moving.

    When left for approx. 10 min

    When left for approx. 60 min

    Power-saving screen

    Measurement screen

    Sleep

  • 　If you have power sensors

    When a signal is received from a paired power sensor, power is displayed as one of the current functions.

    Power

    * When the power value exceeds 999, the last three digits are displayed.

    * It is recommended that the sensor is periodically calibrated before power measurement.
    ​ Power sensor calibration
