Measurement
Important
• Smartphone use
When measuring, turn the smartphone display off, and with Cateye Cycling™ running, store the smartphone in a safe place such as a bag or pocket.
As measurement start/pause/resume and reset operations (finish trip) can be performed remotely from smart computer, there is no need to take out your smartphone until you want to save or upload trips.
* Cateye Cycling™ can measure even when running in the background.
• Restrictions on measurement
In Mirror Mode, the maximum elapsed time that can be measured is approximately 27 hours and maximum trip distance is 1000 km [620 mile]. When either of these values is exceeded, measurement finishes and trip data is saved temporarily.
In this case, the display returns to the [ready] (measurement standby) screen ready to start the next trip measurement.
Starting measurement
Smart computer
When smart computer is on the [ready] (measurement standby) screen, pressing MODE for 1 second starts measurement.
Measurement standby
(1 second)
Measurement starts
* If the connection with the smartphone is interrupted during measurement, smart computer switches to the smartphone search screen. When the connection is reestablished, Smart computer returns to the measurement screen.
Pausing/resuming measurement
Smart computer
Pressing MODE for 1 second displays [PAUSE] and pauses measurement.
Pressing MODE again for 1 second resumes measurement.
During measurement
(1 second)
Paused
Alternate display
Trip distance
Finishing measurement (reset operation)
Smart computer
Pressing MODE for 3 seconds finishes measurement. Trip data is saved temporarily on the smartphone and measurement values are reset.
* If you tap the
(Finish measurement) button in Cateye Cycling™ during measurement or while measurement is paused, measurement will end and the trip will be saved. No operation from the smart computer is necessary.During measurement
Reset/
finish trip
(3 seconds)
Measurement standby
Paused
To continue measuring, press MODE for 1 second.
To finish measuring, save and upload the trip data via the Cateye Cycling™ app.
●Functions during measurement

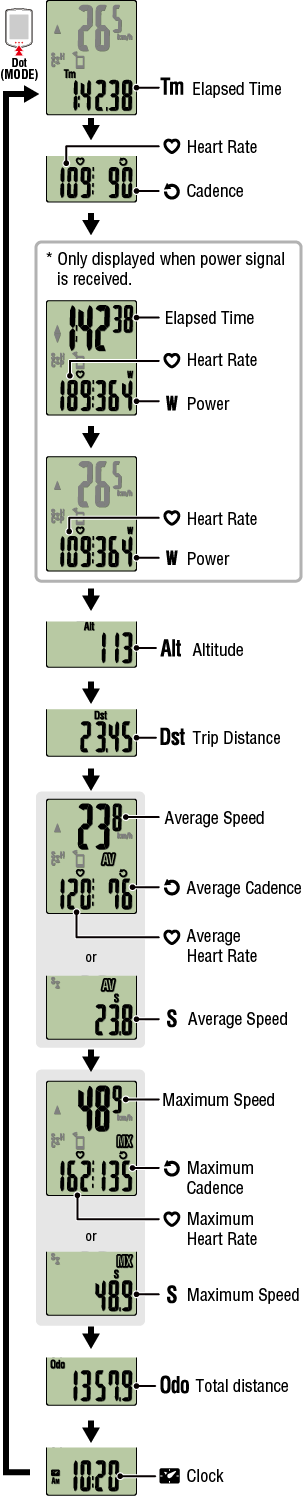

Switching measurement data display
Smart computer
You can switch the display of data being measured in Cateye Cycling™ by pressing MODE.
* The data displayed changes depending on the state of the sensor connection.
* Measurement data will be displayed as [--] if the sensor signal cannot be received.

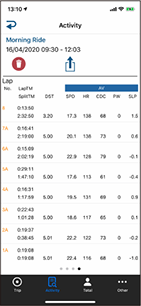

Auto lap function
Smartphone
Cateye Cycling™ makes it possible to record laps automatically without any button operation.
Set the method—distance, time, or location—to be used for the automatic lap function.
Recorded laps can be viewed on Cateye Cycling™ or the Cateye Atlas™ website.
Auto pause function
Smart computer
This function automatically pauses measurement when the connection between the smartphone and smart computer is broken.
Measurement resumes automatically when the connection is reestablished.
Power-saving mode
Smart computer
When smart computer is left on the [ready] (measurement standby) screen, [PAUSE] screen, or smartphone search screen for approximately 20 minutes; Cateye Cycling™ is closed; or [Connect] is turned off, the sleep display is activated.
When MODE is pressed, smart computer returns to the smartphone search screen and then returns to the measurement screen when the connection with the smartphone is reestablished.
Measurement standby
Paused
Sleep
When left for approx. 20 minutes
Smartphone search
screen
If you have power sensors

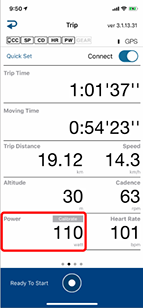

When a signal is received from a paired power sensor, power is displayed as one of the current functions.
Smart computer
Power
Smartphone
* If a power value is displayed when there is no workload, perform calibration.
Power sensor calibration
Saving and uploading trips
