CATEYE PADRONE SMART
CATEYE STRADA SMART
Pairing
Important
• Pairing must be performed in order to use smart computer and sensors.
• Do not pair sensors at a race venue or in similar locations where there are a lot of other users. Doing so may cause smart computer to be paired with another device.
Smartphone

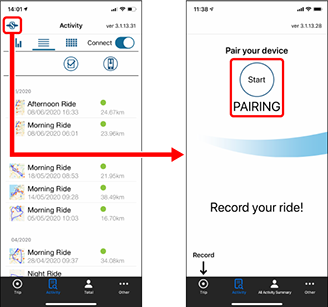

1. From the activity screen, tap (Startup) > [Start] in that order.
For instructions on using devices, refer to the following:
Pairing with smart computer
Smart computer
1. On the measurement screen, press MODE for 1 second to display the smartphone search screen.
Smartphone search
screen
Smartphone
When Cateye Cycling™ detects smart computer, a message is displayed on the smartphone.
Tap [Pairing] to complete pairing.
* If you are using Padrone Smart with an iPhone, the following message may be displayed.
If the above message is displayed, tap [Cancel].
Smart computer
When the smartphone switches to the Trip screen, smart computer switches from the smartphone search screen to the [ready] (measurement standby) display.
Smartphone search
screen
Measurement standby
Smart computer pairing is now complete.
If you have other sensors, continue pairing them.
Pairing with a sensor
Smart computer can be used with sensors compatible with Bluetooth. Pair it with optional accessories or third party sensors as required.
Important
• Perform pairing with all sensors and other devices that you want to connect.
• Third party sensor pairing information cannot be synchronized.
When measuring in Sensor Direct Mode, it is necessary to configure sensor settings separately via smart computer.
1. If pairing with the smart computer was already performed, tap [Pair to Device] from the device screen.
* If the startup screen is displayed, begin the procedure from step 2.
2. Activate the sensor.
When Cateye Cycling™ detects the sensor signal, a message is displayed on the smartphone.
Tap [Pair]. The synchronized sensor is displayed on the [Device] screen and pairing is completed.
* For the CATEYE sensor signal activation procedure, refer to the sensor’s online manual.
* When pairing a sensor with Cateye Cycling™, an "A" is displayed after the sensor name.
Smartphone
3. Set the tire circumference for a sensor capable of speed measurement.
* If you have not paired with a sensor capable of speed measurement, this step is not required.
Tap [Device], and then tap [(Sensor name)] > [Tire Circumference] (the length of the outer circumference of the tire).
Scroll to find the tire size indicated on the sidewall of the tire. Tap and hold to choose the tire size.
* Default value: 2,096 mm (700x23c)
* Set tire circumference for each sensor.
* You can also change the device name and delete pairing from this screen.
Accurately finding the tire circumference
Sensor pairing is now complete.
* If you want to pair another sensor, repeat the same procedure.
