GE100
StVZO 100Lux headlight For E-Bike
FEATURE
[HL-EB570G_1]

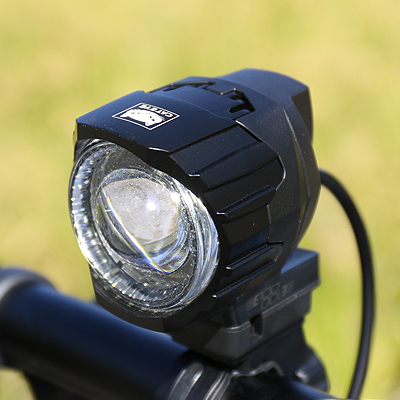

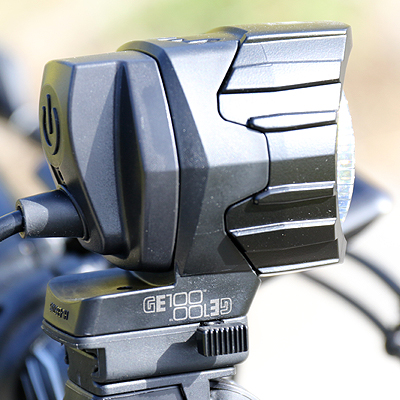

- 100Lux headlight with direct connection to E-Bike drive unit
- CATEYE DUAL SYSTEM™

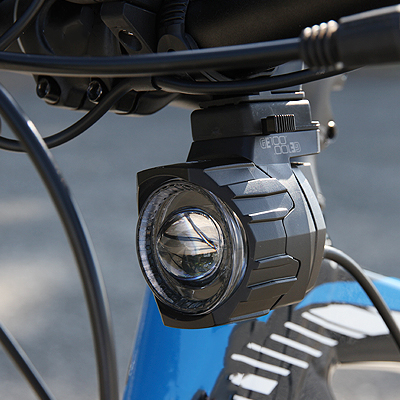

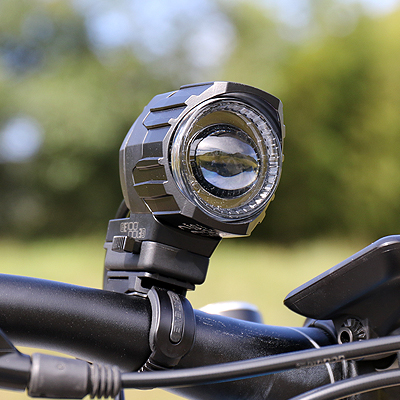

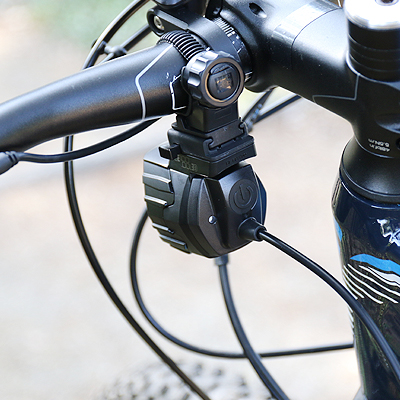

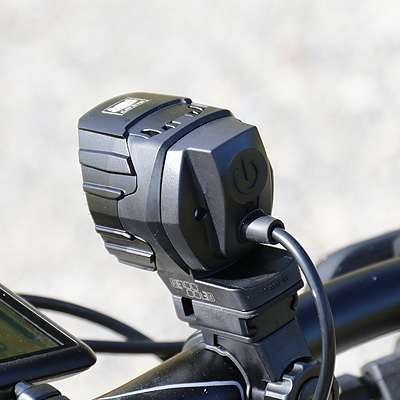

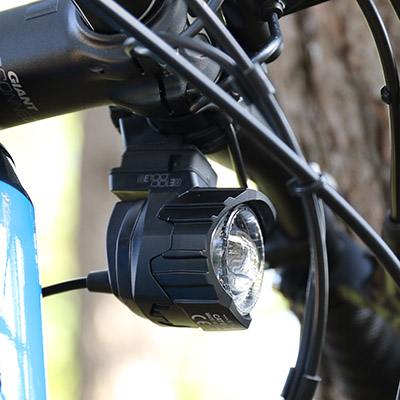

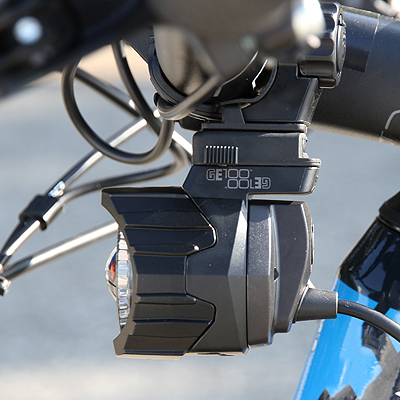

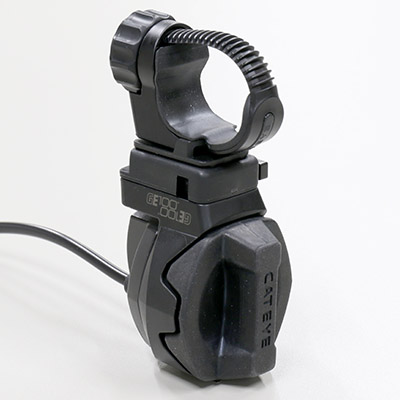

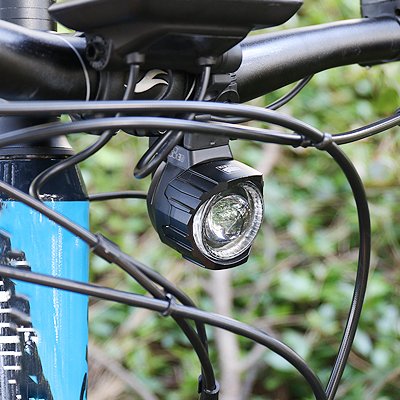

Can be mounted above or below the handlebar by attaching the bracket holder to the head unit upside down.
Can be used as a rechargeable headlight with the optional cartridge battery. - 2 light modes (High / Low (Eco))

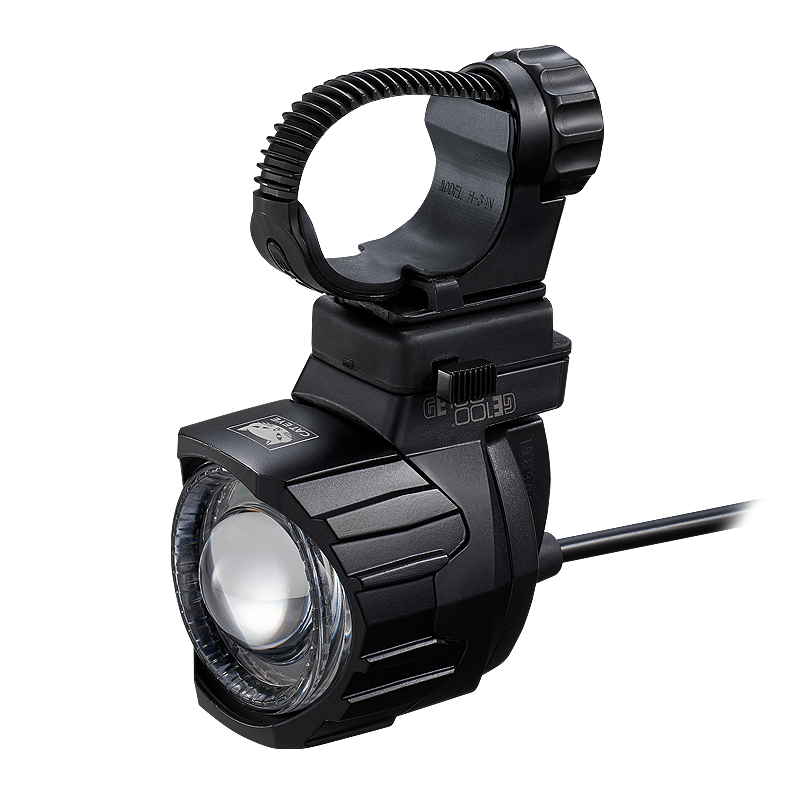

- FlexTight™ H-34N bracket
※Design and specifications are subject to change without notice.
Tech Specs
- Dimension：
- 65.0 x 63.0 x 45.5 mm
- Weight：
- 94.5g (Light unit only)
- Modes：
- High - 100Lux
Low (Eco) - 10Lux
- Water resistant：
- IPX4
- E-Bike output compatibility：
- Input voltage DC5.5 − 14.5 V
Power consumption 6.8 W Nominal power(s)
Cable length Approx. 150 cm (Red: Positive / Black: Negative)
- Other：
- K-No.1808
Lighting mode memory function.
Small Parts
-
H-34N Bracket for Headlights（5338827N）
-
Bracket Dial for H-34N（5343510）
-

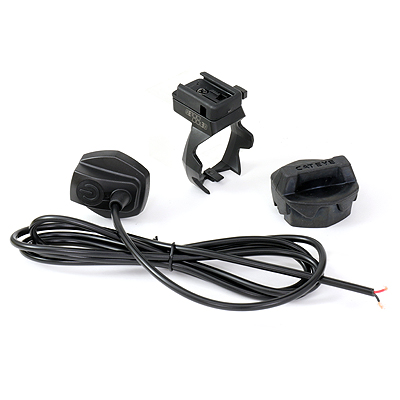

E-Bike adapter（5336920）
E-Bike adapter
Compatible with GVOLT100 / GE100 -
Cartridge Battery BA-3.4DS（5336840）
Option Parts
Li-ion 3.6v 3400mAh
Compatible with GVOLT100
-

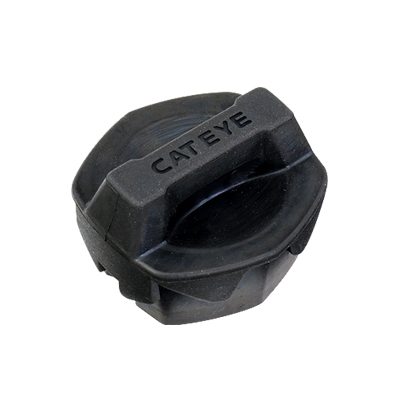

Protective cover（5336860）
Option Parts
Protective cover For BA-3.4DS/E-Bike adapter
-
Center Fork Bracket（5342440）
Option Parts
-

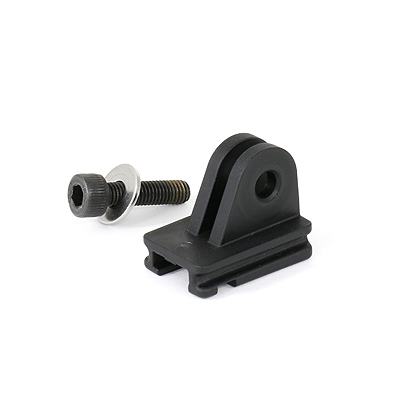

GP-Bracket（5445340）
Option Parts
-
Out-Front Bracket 2 OF-200（1604110）
Option Parts
Aluminum bracket compatible with CatEye Wireless computers and headlights. Learn more
