GE100_CONNECT
StVZO 100Lux headlight for E-Bike with connector type relay cable.
FEATURE
[HL-EB570G]

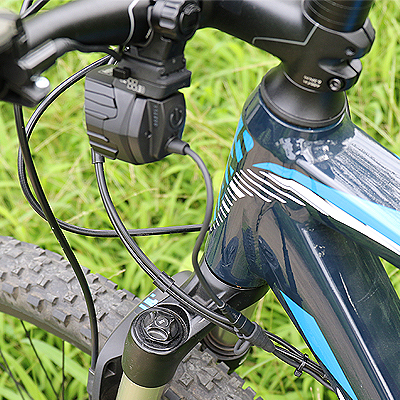

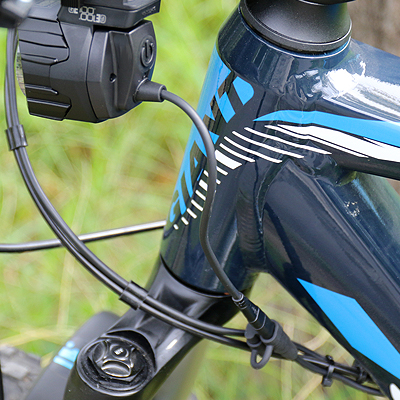

- 100Lux headlight with direct connection to E-Bike drive unit
- CATEYE DUAL SYSTEM™
Can be mounted above or below the handlebar by attaching the bracket holder to the head unit upside down.

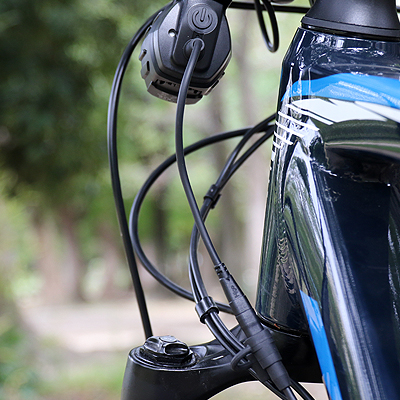

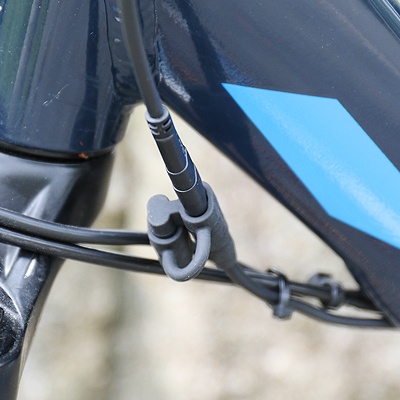

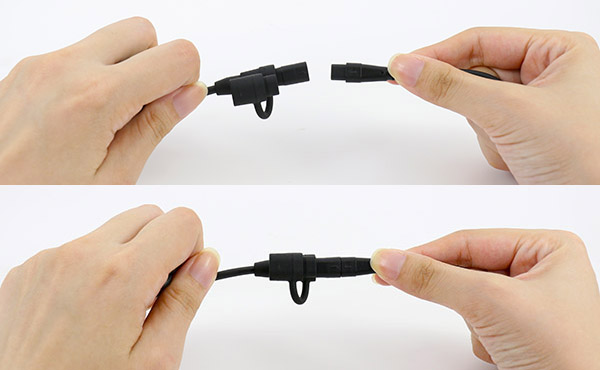

Can be used as a rechargeable headlight with the optional cartridge battery. - The light unit can be easily removed from the bicycle via detachable connector type relay cable
- 2 light modes (High / Low (Eco))
- FlexTight™ H-34N bracket
※Design and specifications are subject to change without notice.
Beam Chart
You can compare two lights side by side. Move the centerline to the right or left to adjust the area. Click on mode button to change modes.
Tech Specs
- Dimension：
- 65.0 x 63.0 x 45.5 mm
- Weight：
- 94.5g (Light unit only)
- Modes：
- High - 100Lux
Low (Eco) - 10Lux
- Water resistant：
- IPX4
- E-Bike output compatibility：
- Input voltage DC5.5 − 14.5 V
Power consumption 6.8 W Nominal power(s)

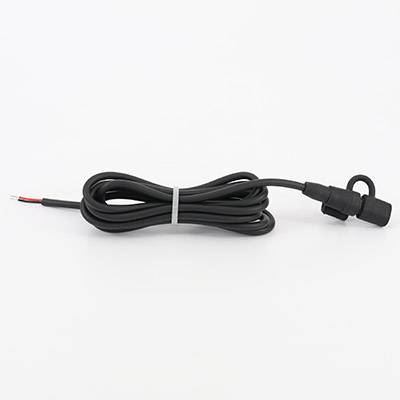

Cable length Approx. 160 cm [Light unit : Approx. 15 cm / Relay cable : Approx. 145 cm] (Red: Positive / Black: Negative)
- Other：
- K-No.1808
Lighting mode memory function.
Small Parts
-
H-34N Bracket for Headlights（5338827N）
-
Bracket Dial for H-34N（5343510）
-

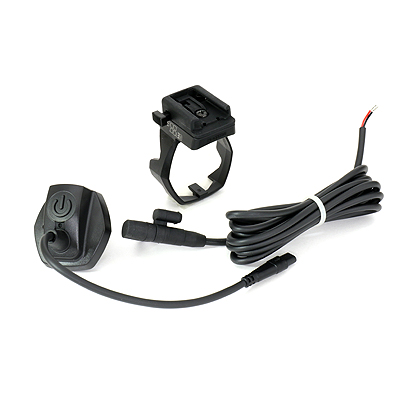

E-Bike adapter（5336922）
E-Bike adapter
Compatible with GVOLT100 / GE100 -
GP-Bracket（5445340）
-
Cartridge Battery BA-3.4DS（5336840）
Option Parts
Li-ion 3.6v 3400mAh
Compatible with GVOLT100 -
Protective cover（5336860）
Option Parts
Protective cover For BA-3.4DS/E-Bike adapter
-
Center Fork Bracket（5342440）
Option Parts
-
Out-Front Bracket 2 OF-200（1604110）
Option Parts
Aluminum bracket compatible with CatEye Wireless computers and headlights. Learn more
