PADRONE DIGITAL
Cadence and ride stats on a large, 3-row screen
with up to four data displays.
[CC-PA400B]
[IMPORTANT] To all users of Padrone Digital (CC-PA400B)

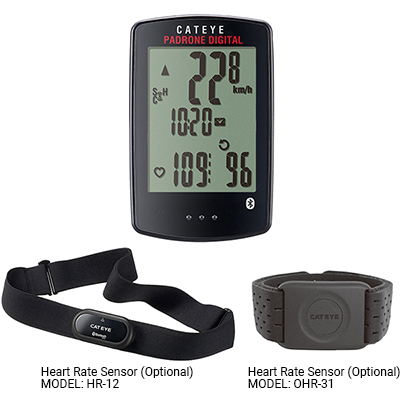

The Padrone Digital Wireless shows your cadence and ride stats on a large, 3-row screen with up to four data displays and is also triple wireless upgradeable with an optional heart rate sensor so you can capture all the data you need.
Functions
- Current / average / maximum speed
- Current / average / maximum cadence
- Current / average / maximum heart rate (optional)
- Total distance
- Trip distance 1 & 2
- Moving time
- Clock
Features
- Large, 3-row screen with up to four data displays
- Upgradable to triple wireless with the optional heart rate sensor
- Compatible with Bluetooth® sensors
- Automatic sensor and tire recognition applicable to multiple bikes
- ClickTec™ button interface
- Auto start / stop
- Pace arrow
- Programmable display
- Sensor battery alarm
- Programmable odometer
- Setup on menu screen or with smartphone app Cateye Cycling™
- Import a summary of ride data and upload to CATEYE Atlas™, Strava™ and TrainingPeaks™ via Cateye Cycling™ app
- FlexTight™ universal bracket
[ Before you purchase ]
To setup the unit, import a summary and upload to websites using the smartphone, please check if your model is compatible with our app.
Cateye Cycling Recommended Device List(PA400B)
* The Padrone Digital is not the smart computer. Measurement and notification in Mirror mode is unavailable.
※Design and specifications are subject to change without notice.
Tech Specs
- Current speed：
- 0.0(4.0)～105.9km/h
- Average speed：
- 0.0～105.9km/h
- Maximum speed：
- 0.0(4.0)～105.9km/h
- Total distance：
- 0.0～99999.9/100000-999999km
- Trip distance 1：
- 0.00～999.99km
- Trip distance 2：
- 0.00～9999.99/10000.0～99999.9km
- Moving time：
- 0:00'00"～99:59'59"
- Current cadence：
- 0(20)～255rpm
- Average cadence：
- 0～255rpm
- Maximum cadence：
- 0(20)～255rpm
- Current heart rate：
- 0(30)～255bpm *1
- Average heart rate：
- 0～255bpm *1
- Maximum heart rate：
- 0(30)～255bpm *1
- Wireless transmission：
- Bluetooth®
- Clock：
- 0:00'～23:59' [1:00'～12:59']
- Pace arrow：
- Yes
- Auto power saving：
- Yes
- Auto start/stop：
- Yes
- Auto sensor recognition：
- Yes
- Tire size：
- 100mm～3999mm (default：2096mm)
- Compatible sensors：
- CatEye brand ISC-12 Speed/Cadence sensor / HR-12 Heart Rate sensor / SPD-30 Speed sensor / CDC-30 Cadence sensor / OHR-31 Heart Rate sensor
* Speed, Cadence and/or Heart Rate sensors conforming to Bluetooth4.0 CSCP/HRP are supported but compatibility with third party devices is not guaranteed.
- Battery：
- Computer: CR2032 x1, Speed sensor: CR2032 x1
- Battery life：
- Computer： Approx 4 months
Speed sensor： Approx 5 months
- Dimension / Weight：
- Computer：67.5 x 43 x 15.6mm / 30grams
Speed sensor：70.4 x 86.3 x 23.5mm / 19.2grams
- Water resistant：
- IPX8
- Note：
- *1 Bluetooth® heart rate sensor is required.
Small Parts
-
Bracket（1602193）
* Use as a set with #1600280N.
-
Bracket Band（1600280N）
* Use as a set with #1602193.
-
FlexTight™ Kit（1602194）
-
Dial of FlexTight™ bracket for Computers / Safety lights（5343520）
-
Bluetooth Speed/Cadence Sensor ISC-12（1603970）
-
Lithium Battery（1665150）
CR2032
-
Wheel Magnet（1699691N）
-
Magnetless Speed Sensor SPD-30（1604520）
Option Parts
Dual band Bluetooth and ANT+, magnetless sensor with integrated accelerometer.Learn more
-
Magnetless Cadence Sensor CDC-30（1604530）
Option Parts
Dual band Bluetooth and ANT+, magnetless sensor with integrated accelerometer.Learn more
-
Heart Rate Sensor OHR-31（1604540）
Option Parts
Dual band Bluetooth and ANT+, Heart Rate Sensor.Learn more
-
Bluetooth Heart Rate Sensor HR-12（1603980）
Option Parts
-
HR Strap（1603595）
Option Parts
-
Out-Front Bracket 2 OF-200（1604110）
Option Parts
Aluminum bracket compatible with CatEye Wireless computers and headlights. Learn more
-
Out-Front Bracket OF-100（1604100）
Option Parts
Compatible with CatEye wireless computers excluding V series and Adventure. Learn more
-
Slim Bracket Kit（1603892）
Option Parts
-
Rubber Band / Nylon Tie（1603893）
Option Parts
